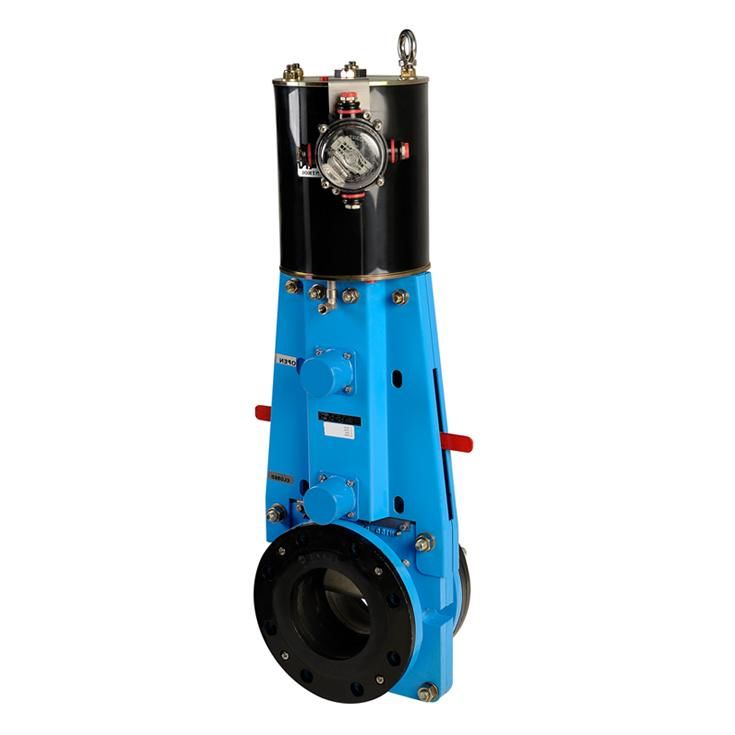

SKG Flanged Knife Gate Valves

-SKG Flanged

For knife gate valves that perform in the most challenging conditions, trust in RF VALVES.

SKG Advantages & Key Features

Pass-through design
Bi-directional valve with a packing-less design
Full port bore formed by 2 heavy-duty elastomer sleeves with J-ring stiffener to maintain sleeve shape and prevent wear and tear
Yoke design prevents slurry splatter and allows for easy mounting of proximity or limit switches
Top bracket design accommodates manual, pneumatic, hydraulic or electric actuation with no modifications needed

Specifications

Size Range	3" (80mm) to 26" (650mm)
Temperature	Up to 390degF
Flange Drilling	ASME B-16.5 Class 150, AS2129 Table D&E, PN10, PN16
Actuation	Manual, Manual Bevel Gear, Pneumatic, Electro-mechanical and Hydraulic
Sleeve Material	NR, EPDM, NBR, or FKM/FPM
Body & Yoke Material	FUSION BONDED EPOXY POWDERCOATED Ductile Iron with Fusion bonded epoxy mild steel yoke plates
Blade Material	Stainless Steel 316L , Teflon coated, or Duplex 2205

Downloads

SKG Flanged

Accessories

Actuator - Fail Positions - Fail Close/Open via Mechanical or Air Spring
Actuator Lockout
Manual Override
Positioner - Electro-pneumatic or pneumatic
Purge Port - Removable bottom cover and flush-out connections
Junction Box
Gauges
Limit Switches - Proximity, Mechanical or Magnetic
Pressure Switch
Filter/Regulator
Solenoid
