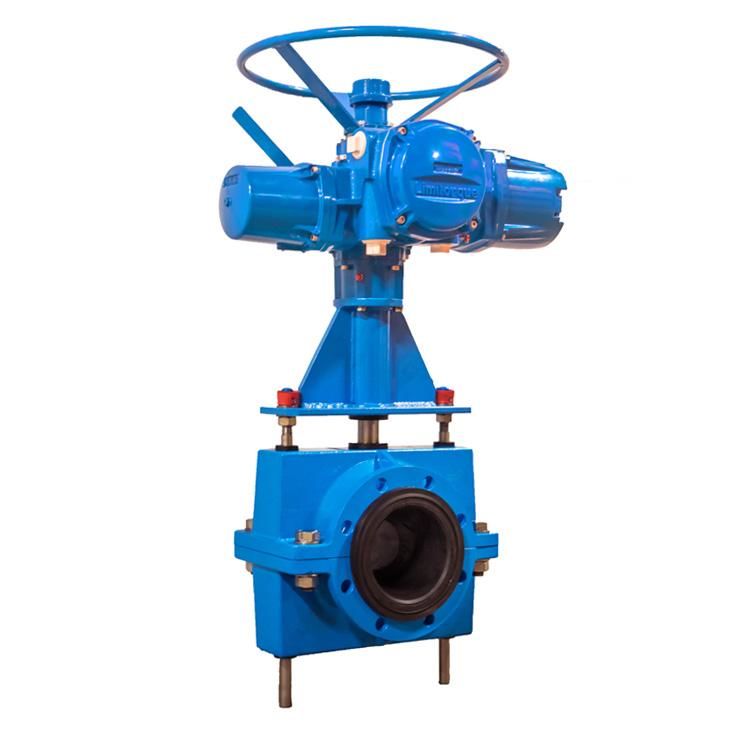

Electric Pinch Valves

Our patented pinch valve design uses elastomer tube folds to prevent stretching and extend the life of your valve.

RF Valve Advantages & Key Features

Configurable with most electric multi-turn actuators on the market
Exterior as well as interior corrosion resistant Fusion Bonded Epoxy Powdercoating
In-line and quick tube change with patented tube folds for durability & self-cleaning
Standard Face-to-Face

Available Configurations

CONTROL – MODULATING (Sizing available)
ISOLATION – ON/OFF

Specifications

Size Range	1" (25mm) to 60" (1500mm)
Temperature	-50degF to 250degF
Max. Operating Pressure	Up to 300psi (20bar) (consult for higher pressures)
Standard Face-to-Face	ASME B-16.10, DIN 3202, ISO 5732
Flange Drilling	ANSI 150#, ANSI 300#, DIN, JIS, AS
Actuation	Electric Actuator with or without manual hand wheel override (120V, 240V, 360V, or 480V)
Elastomer Qualities	NR, PGR, EPDM, NBR, IIR, CR, FPM, CSM (View Chart)
In-Line Tube Change	Yes
Wear Sensor	Yes, option
Body Type	Enclosed or Sealed
Body Material	Ductile iron (CRN available) or aluminum

Downloads

RF Valve

Accessories

Positioner - Electro-mechanic - 4-20mA
MONSYS Box - Smart Valve Wear Sensor System
Junction Box
Gauges
Limit Switches - Proximity or Mechanical
Pressure Switch
Filter/Regulator
Solenoid
Opening Tags
Elastomer Tube Options - wear sensor wire or reduced port
